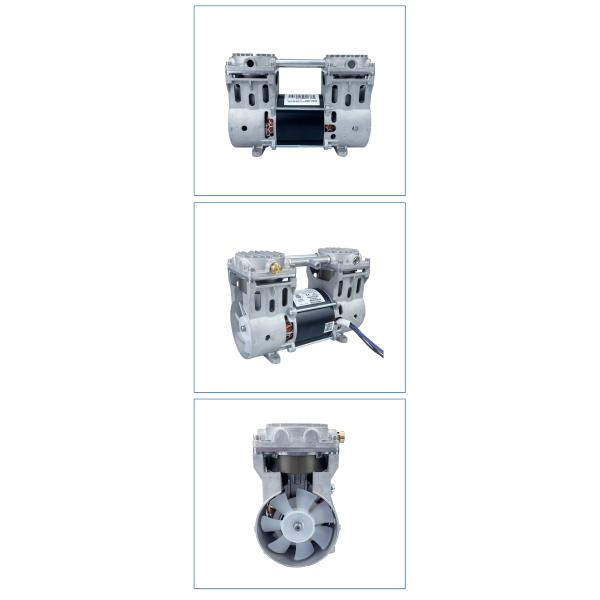

Wholesale 70L/Min Noiseless Oil Free Air Compressor Head For Glass Lifter Oxygen Concentrator With 110V AC Power

Product Categories

Changzhou Xunwande Electronics Co., Ltd

Contact Now

Brand Name : XWD

Model Number : ZGK400P-70

Certification : CE ETL

Place of Origin : China

MOQ : 100 PCS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1000000 Piece/Year

Delivery Time : 15-30 days

Packaging Details : Foam cotton and wood box

Model No. : ZGK400P-70

Net Weight : 6.5kg

Air capacity : 70L/Min

Pressure a rated load : 30 PSI

Power at rated pressure : 390W

Current at rated pressure : 3.6A

Variable output speed : 1650rpm

Nominal voltage : 110V/60HZ

Certificate : ETL

Warranty : 1 years

Contact Now

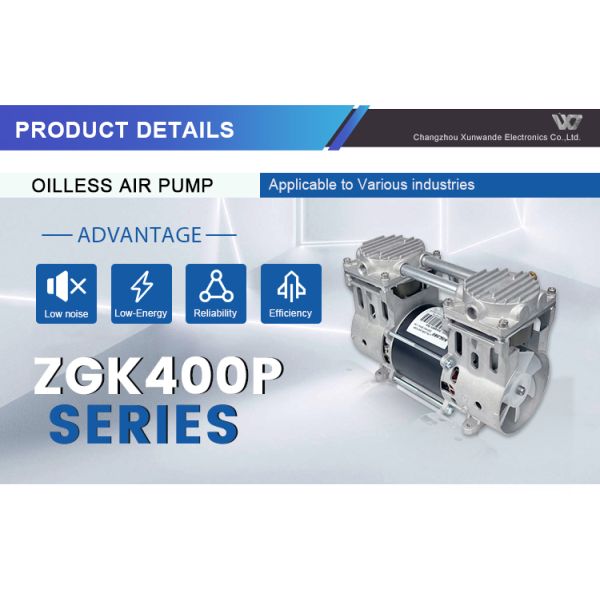

Complete solution leader in oilless air pump field

* Oilless operation
* Permanently lubricated bearings

* High performance piston seal

* ETL certificated (Safety)

Model Number	ZGK400P-70
Performance Data
Head configuration	Pressure parallel flow	Pressure parallel flow
Nominal voltage	110V/60HZ	220V/50HZ
Variable output speed	1650 rpm	1400rpm
Max.open air flow	70L/min	70L/min
Max.rated pressure	30PSI	30PSI
Current at rated pressure	3.6A	1.8A
Power at rated pressure	390W	375W
Electrical Data
Motor insulation class	B
Motor protection	Not included-Customer to integrate into system controller
Power lead wire color,gauge	Green(phase A),black(phase B),red(phase C),22AWG
Hall sensor wire color,gauge	Yellow(+VDC),brown(HS1),orange(HS2),blue(HS3),gray(ground),22AWG
General Data
Operating ambient air temperature	32° to 104°F(0° to 60°C)
Safety certification	ETL
Dimension(LXWXH)	14784168mm
Net weight	6.5KG
Application	Portable medical battery pulse oxygen concentrator

Wholesale 70L/Min Noiseless Oil Free Air Compressor Head For Glass Lifter Oxygen Concentrator With 110V AC Power
